J.W. Speaker
Engineered Lighting Solutions
LED Work Light – Model 526
Approx 30% of all accidents occur at night, 50% of all accidents are the result of shortcomings in visual perception. The human brain absorbs 90% of all information through the eyes.
The eye is the weak link at night
6" x 6" LED Work Lamps
The Model 526 is available in our traditional flood, trapezoid, and spot beam patterns, as well as an innovative new Anti-Glare beam pattern. Whereas conventional mining haul truck lights create unsafe glare which can blind oncoming vehicles, and angling them down impairs their effectiveness, the Model 526 Anti-Glare beam pattern has been engineered to maximize visibility without blinding oncoming vehicles.
-
Die-cast aluminium housing that is sealed to IP69K
-
Your choice of durable glass or poly-carbonate lens
-
Available in multiple beam patterns, including the innovative new Anti-Glare beam pattern
Applications
-
Construction
-
Industrial
-
Mining
-
Railroad
-
Specialty Vehicles
Features & Benefits
-
9,000 Raw Lumens; 5,800 (Flood, Spot, Trap), 5,500 (Anti-Glare) Effective
-
Voltage: 12-24V DC configuration
-
Flood, Spot, Trapezoid, & Anti-Glare beam patterns available
-
Your choice of durable glass or poly-carbonate lens options
-
Rugged solid state LEDs can withstand shock & vibration Long-lasting LEDs mean never having to replace another bulb again!
-
Die-cast aluminium housing provides maximum protection
-
Universal pedestal mount
-
4 x Model 526XL Anti-Glare Passing Beam mounted at bottom for low beam at 20 degrees
-
2 x Model 526XL Flood beam left and right hand outer at 5 degrees
-
2 x Model 526XL Trap beam left and right-hand inner at 5 degrees
-
2 x Model 526XL Flood beam at rear 5 degrees
-
All Model 526XL LED Lamps to replace standard halogen work lamps
Lighting Setup
 Lighting Setup |  526 Mapping |  526 Mapping |
|---|---|---|
 526 Mapping |

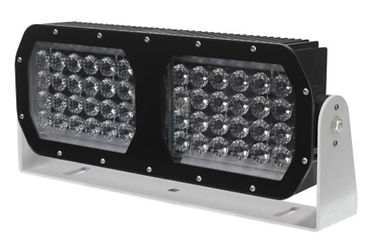

LED Work Light – Model 623
20" x 9" LED Work Lamps
When you’re looking for the most illumination possible, look no further than the Model 623. Boasting bright, white light, the Model 623 high-output LED scene light is J.W. Speaker’s most powerful product yet. It is perfect for a wide range of uses, including mining equipment, light towers, and any application for which you need a vast amount of light.
-
Available in multiple voltages and beam pattern configurations
-
Energy-efficient LEDs remain cool to the touch
Applications
-
Agriculture
-
Construction
-
Marine
-
Mining
-
Off-Road 4x4
-
Power Sports
-
Railroad
-
Specialty Vehicles
-
Truck & Bus
 J.W. Speaker 623-light |  J.W. Speaker 623-light |
|---|
LED Zone Lights – Model 527
10" x 5" LED Warning Lamp
The Model 527 adds a new level of safety to mining and construction sites. It projects a large “Keep Out” zone of light onto the ground to alert pedestrians and vehicles to stay out of potentially hazardous work areas, such as the swinging path of a shovel or drag-line.
-
Durable glass lens stands up to harsh environmental conditions
-
Xenoy housing provides maximum protection
-
Universal pedestal mount
Applications
-
Agriculture
-
Construction
-
Industrial
-
Mining
-
Railroad
-
Specialty Vehicles
-
Truck & Bus
-
Off-Road 4x4
 LED Zone Light Model 527 |
|---|
 LED Zone Light Model 527 |
 Zone Lights |
 Zone Lights |
Forklift Safety Lighting
40% of all forklift accidents involve a pedestrian.
Ensure pedestrians stay a safe distance away from the forklift with the Red Zone Danger Area Warning Light. The Red Zone puts a bright red line on the floor to keep pedestrians away.
This zone can also be called the HALO ZONE and can be adjusted to the distance of your choice. This helps prevent foot injuries and collisions from rear end swing, as well as, showing the NO GO AREA around any piece of mobile equipment.
The Red Zone is mounted on the sides of the forklift and can also be mounted on the rear and/or front to create a complete zone. Each side of the forklift you want to protect will require one Red Zone light. The Red Zone can also be combined with our advanced warning Forklift Blue Spot Lights, to create a complete pedestrian safety system for your facility.
-
Operating voltage 9-64 Volts DC
-
Current draw at 13.5V is 1.39 amps
-
Fast and easy installation, no tools needed
-
Includes mounting bracket and wiring.
-
Compact size 6” x 2.25” x 2.75”
-
Lifetime warranty 100,000 hours rated life
-
Three 6 watt LED’s, 1,200 lumens
-
PC lens material and aluminium body
-
IP67 rated, fully weatherproof
-
-6 to 111 Degrees Celcius temperature rated
 Forklift Safety |  Forklift Safety |
|---|---|
 Forklift Safety |  Forklift Safety |
.jpg)
Electric Rope Shovel LED Scene Illumination - CAT 7495
When you are looking for the most illumination possible, look no further than the Model 623. Boasting bright, white light, the Model 623 high-output LED scene is J.W. Speaker's most powerful product yet. It is perfect for a wide range of uses, including mining equipment, light towers, and any application for which you need a vast amount of light.
-
Available in multiple voltage and beam pattern configurations.
-
Energy-efficient LEDs remain cool to the touch.

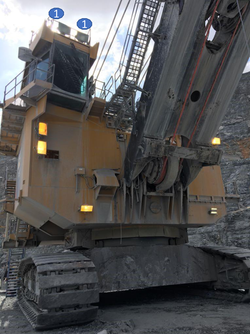

 CAT 7495 Front ViewFront View - For full illumination for the front at the face: 1. Model 623 Wide Flood 2. Model 623 Medium Flood |  CAT 7495 Front Top of CabFront Top of Cab View - For illumination of the boom when required 1. Model 623 Wide Flood |
|---|---|
 CAT 7495 Right Side ViewRight Side View - For illumination on Driver Cab side: 1. Model 623 Wide Flood - Having 2 lights on the driver's side will increase safety and visibility for the operator. |  CAT 7495 Left Side ViewLeft Side View - For illumination on the side of the Non-Driver cab: 1. Model 623 Wide Flood |
 CAT 7495 VR Mapping Image |
Electric Rope Shovel Red Zone - CAT 7495
The Model 527 adds a new level of safety to mining and construction sites. It projects a large "Keep Out" zone of light onto the ground to alert pedestrians and vehicles to stay out of potentially hazardous work areas, such as the swinging path of a shovel or dragline.
-
Durable glass lens withstands harsh environmental conditions.
-
Xenoy housing provides maximum protection.
-
Universal pedestal mount.
 CAT 7495 527 Top View |  CAT 7495 527 Top View Meters |
|---|---|
 CAT 7495 527 Side View |  CAT 7495 527 Side View |
CAT 7495 VR Mapping Image |  CAT 7495 527 in Action |
LED Safety Light – Model 793
6" x 2" LED Warning Light
The Model 793 creates a "keep out zone" to warn other workers to stay out of the turning radius of the vehicle. Offering the industry's only UL recognized safety lights, designed with three color configurations to create the best solution for each industry and application.
Features
-
High-powered LED safety light creates keep-out and keep-away zones
-
Compact and easy to install, with adjustable aiming
-
Precise beam patterns in red, blue and amber
-
Use on vehicles or around stationary objects
-
Rugged design; weather-proof, excellent thermal management
-
UL recognized safety lights
There are countless examples of where safety-zone lighting is needed and appropriate - they're all too important to trust to an inferior light. With superior intensity and light quality, the Model 793 can increase safety, helping employees and pedestrians onsite feel safe and comfortable.
High-visibility around the clock can save an operator's life.
 JW Speaker Model 793 Vehicle | LED Zone Light Model 527 |
|---|
JW Speaker 240V AC Range LED Lights
Model SF
10W–200W Slimline LED Flood Light Range
LED Slimline Flood Lights – Model SF
Perfect for outdoor / indoor area lighting, the Model SF delivers a wide range of light output options for most applications. Whether you’re wanting to light up a dark storage room with the 10W product or the car park outside your office with the 200W product, the Model SF has everything you need!
Model MF
75W–265W Slimline LED Flood Light Range
LED Flood Lights – Model MF
Designed originally as a street light, the Model MF has quickly become a popular option for any downward facing lighting requirements. Anything from lighting up a warehouse workstation using the 75W unit up to illuminating a container yard with the 265W unit, the MF has you covered with incredible light output. One of the strongest features is its durability with an IP rating of IP66 (Sealed against dust entry and heavy amounts of rain) and an IK rating of IK10 (Protected against 20 joules impact) making the Model MF suitable for almost all environments and applications.
Model LF
500W & 1000W LED Heavy Duty Flood Lights
LED Heavy Duty Flood Lights – Model LF
Available in both the 500W and 1000W versions, the Model LF is at the top end of the area flood light range. With 45,000 and 90,000 Lumens respectively, these products are suited to large scale area lighting such as manufacturing plants and trucking depots.
Model TF
500W & 1200W LED Heavy Duty Tower Flood Lights
LED Heavy Duty Tower Flood Lights – Model TF
The Model TF range is similar to the LF range in light output but the biggest difference is that the tower flood lights have been designed for maximum distance using round optics. The Model TF range comes in 5°, 15° and 25° beam patterns which makes them ideal for lighting towers or applications where the mounting height is rather high (12M +).
Model HB
100W - 200W LED High Bay Lights
LED High Bay Lights – Model HB
The Model HB range comes in four different light output levels meaning there will be a product suitable for your application all the way up to a 9 Meter mounting height!
Model PL
40W LED Panel Light Range
LED Panel Lights – Model PL
Dimly lit offices are a thing of the past with the Model PL range of slimline LED panel lights. Fluorescent tubes have been the go to office light for decades because they are efficient and cheap to replace but something that often gets overlooked when designing office lighting is the quality of light being emitted.
Worker productivity is one of the most valuable assets to a business and dimly lit rooms often result in employee fatigue and loss of concentration. With at least 30% more light output than the fluorescent light fixtures, the Model PL LED lights will drastically improve your work space.
Model WP
25W & 33W LED Vertical Wall Pack Lights
Vertical LED Wall Pack Lights – Model WP
The Model WP range is a simple and effective range of LED wall pack lights ranging from 25W to 145W. They are perfect for general area lighting such as illuminating walkways or doors.
Model WP
60W & 140W LED Horizontal Wall Pack Lights
Horizontal LED Wall Pack Lights – Model WP
The Model WP range is a simple and effective range of LED wall pack lights ranging from 25W to 145W. They are perfect for general area lighting such as illuminating walkways or doors.
Model WP
60W & 140W LED Horizontal Wall Pack Lights
LED Waterproof Batten Lights – Model WB
Power consumption is a major consideration for buildings when choosing how much and what type of area lighting is used in a large location. Parking complexes often run hundreds of lights 24/7 but that can be costly.
The Model WB range not only offers a standard LED batten light to give general area lighting, but also a product with a built in motion sensor to turn lights on. A popular combination is to run the standard product (990030) in the driveway areas and then use the motion sensor lights (990031) above the parking bays. This kind of combination can drastically reduce electricity usage.
